Danh mục sản phẩm
  /  CSTR-BKHF300200R60T

CSTR-BKHF300200R60T

0 đ Liên hệ

Mã SP: CSTR-BKHF300200R60T

Bảo hành:

Địa chỉ mua hàng



    Product feature CSTR-BKHF300200R60T

    • High density LED distributed at the bottom of the light source
    •  Good uniformity, soft and natural light, high brightness
    • Flexible size, convenient customization, wide range of applications (couldopen square hole or round hole)
    •  A variety of install ation methods, easy to install

    Application CSTR-BKHF300200R60T

    • Ceramic surface pattern inspection
    • Tablet appearance inspec tion
    • Carton positioning
    • Compressor surface defect inspection
    • Keycharacter recognition of remote control
    • LED substrates inspec tion
    • Inspec tion the extern al contour edge positioning

    Wave length/color temp
    		 Red 620-630 nm IR 850-940 nm
    Blue 465-475 nm UV 3 65-405 nm
    White 6000-6500K Green 520-530 nm
    Storage environment
    Temperature
    		 -20-60'C
    Humidi ty
    20-85%RH(Non-condensation)
    Using environment 0-40°C
    Option accessories Extension c able
    Controller CSTG-DPS series, CSTG-APS series, CSTG-SPS series (The selected controller should match the power of the light source)
    Service life
    		 When the environment at 2S'C, the red color works continuously for 60000 hours with 50% illumination,the decrement at 50%
    When the environment at 25°(, the white color workscontinuouslyfor 30000 hours with 50% illumination,the decrement at 50%
    Quality assurance CSTG products shipped out within 1 year, th e fault not caused bypersonal reason, will provide free maintenance or replacement services

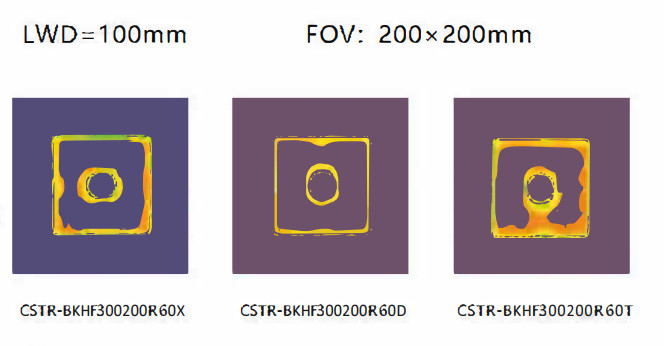

    Uniform chart of light source CSTR-BKHF300200R60T

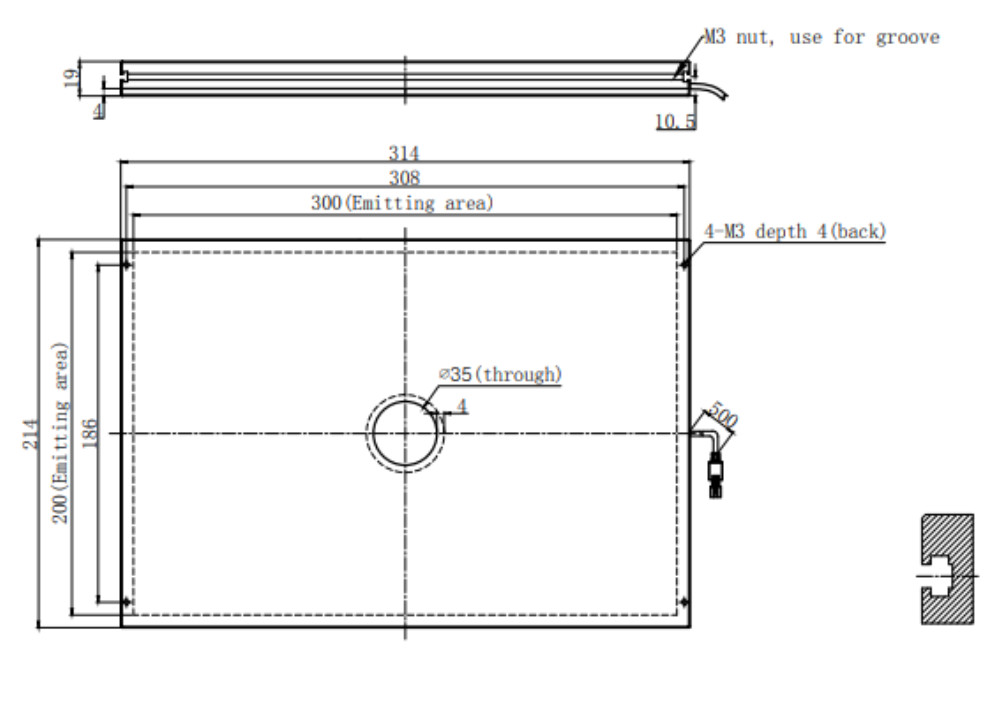

    Specification CSTR-BKHF300200R60T

    CSTG No
    		 Color Power{W) Luminous Overall size{mm)
    Recommended controller
      R G/B/W size{mm) L W H
    CSTR-BKHF300200R60T   38 54 300x200 314 214 19 CSTG-DPS, CSTG-APS, CSTG-SPS
